LNG Lco2 Liquid Oxygen Micro Bulk Tank

Short Description:

Runfeng miniature cryogenic liquid storage tank has a double-layer structure of internal and external containers. Compact structure, low evaporation rate, small floor area, centralized control, safe and reliable, convenient operation and maintenance. The inner container is made of stainless steel and hung in an outer container with a supporting device. The space between the inner container and the outer container is wrapped with insulating materials and forms a high vacuum state.


Product Detail

FAQ

Product Tags

Product description:

    CE standard low-temperature storage tank 3-5 m ³ Miniature bulk liquid nitrogen storage tank, equipped with pressure and liquid level remote transmission, metering and other equipment. The tank body is divided into double-layer structure, internal and external containers and internal pipes.Our company provides customers with various low-temperature storage tanks from standard design to customized design, which can be customized according to customer needs. It is applicable to food, medical and chemical industry, industrial production and other fields.

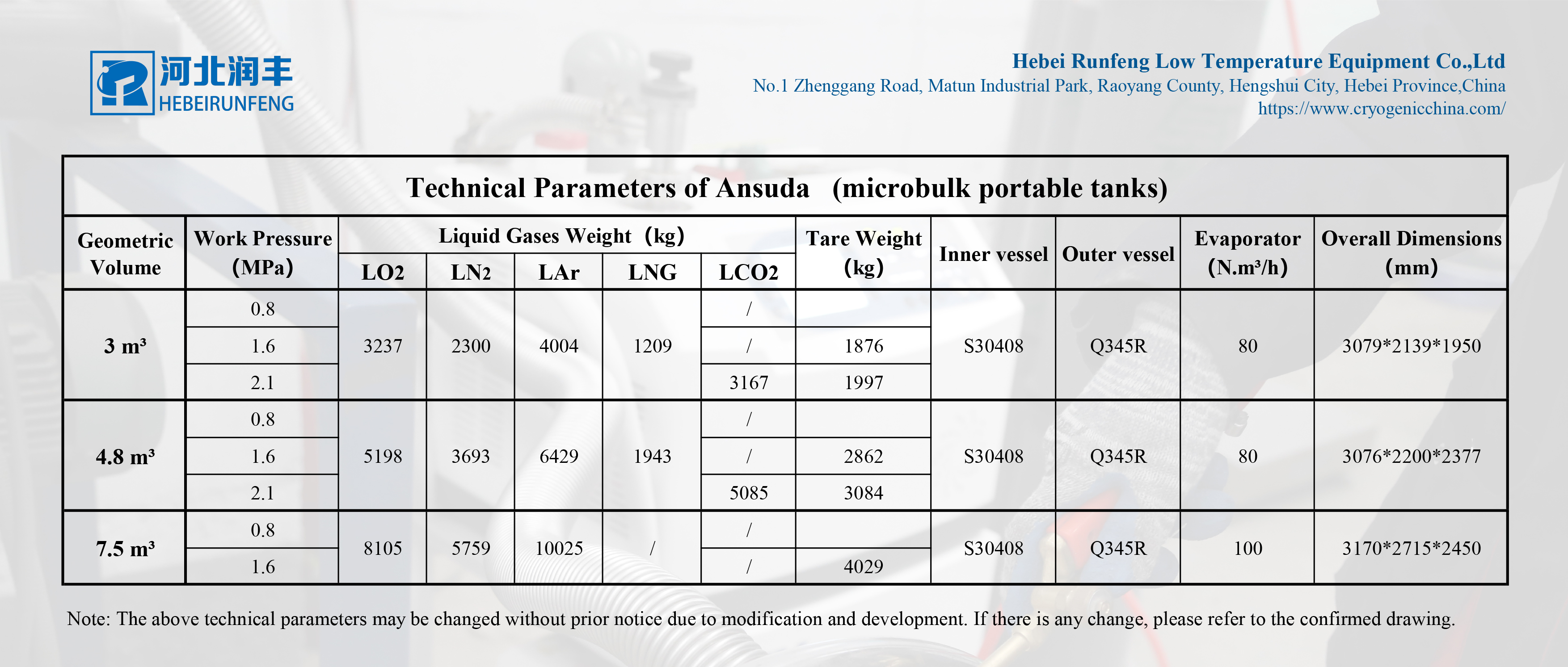

安速达上

Model: 2m ³- 5m ³

Pressure: 2.16Mpa

Application scenarios: food, medical and chemical, industrial production, etc

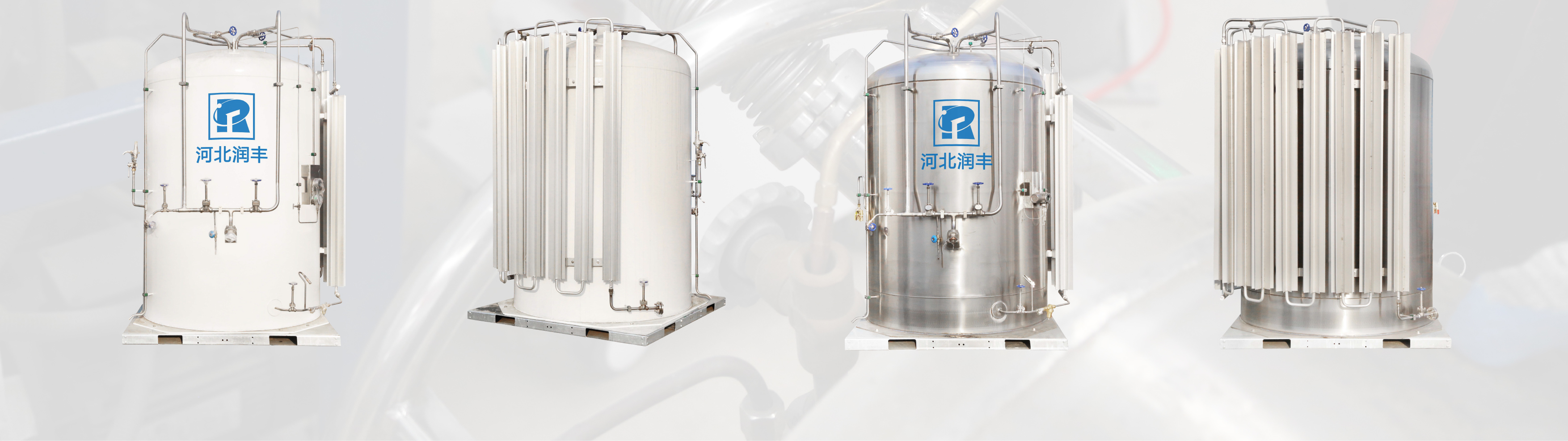

安速达下

Main features:

1. It covers a small area and can be controlled centrally.

2. Fixed base, higher safety.

3.High vacuum multi-layer insulation technology is adopted.

Application area

    Microbulk tank can be widely used in food, medical and chemical industry, industrial production, metal processing, water treatment, energy production, etc

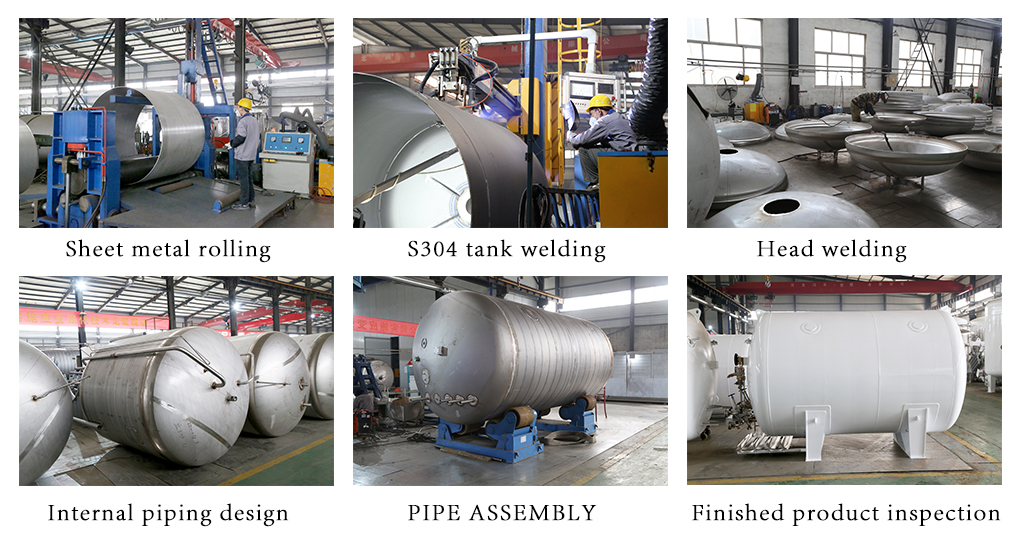

Production process:

储罐生产流程jpg

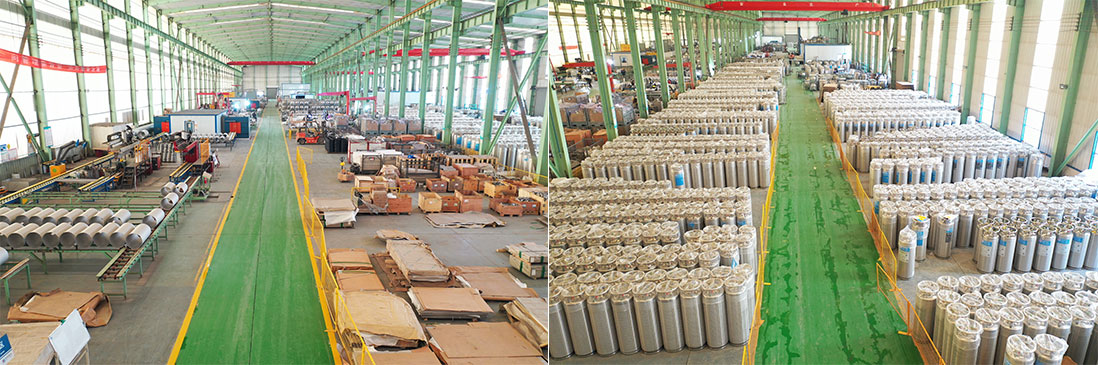

Company Profile:

  Hebei Runfeng Cryogenic Equipment Co., Ltd. is a new high-tech enterprise specializing in the design, manufacture, research and development and technical service of low-temperature pressure vessels.The company adopts the advanced production equipment at home and abroad at present, and has advanced equipment such as large hydraulic tilting plate bending machine, Italy automatic numerical control four-roller plate bending machine, automatic numerical control longitudinal seam, circumferential seam welding machine, vacuum pumping unit, numerical control winding machine, electrostatic spraying, etc.The company has advanced detection means, including helium mass spectrometer leak detector, spectrum analyzer, automatic ultrasonic flaw detector, magnetic particle flaw detector, X-ray digital imaging system and other sophisticated advanced detection equipment.The company’s leading products include liquefied natural gas cylinders for automobiles, low-temperature welding and thermal insulation cylinders, low-temperature storage tanks, DI and D2 pressure vessels and other series of products.It has an annual capacity of 40000 LNG cylinders and other pressure vessels with an output value of more than 100 million yuan.


Exhibition:

    Our company has been invited to participate in exhibitions at home and abroad for many times. We hope to invite you to visit and exchange with us.

展会

Qualification certification:

资质认证

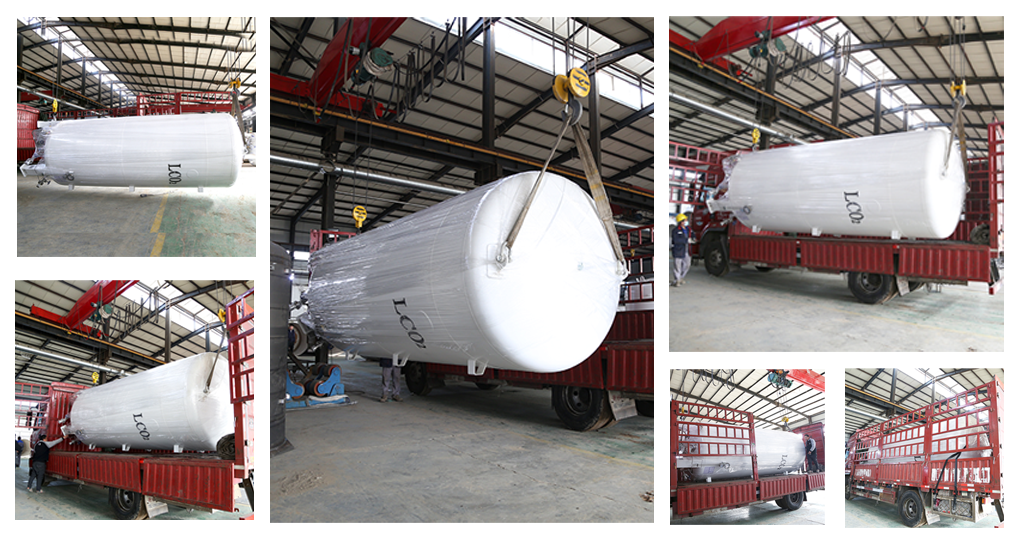

Packaging and transportation

Packaging: We can package according to customer requirements.

For shipment: we have an agent freight forwarder to help customers find the best freight. We recommend that customers conduct business in the form of CIF.

储罐发货
