5m ³ Vertical low-temperature storage tank Runfeng
Short Description:
Runfeng 5m ³ Stainless steel tanks can be customized with different specifications and materials according to application scenarios and gas storage categories. This product uses stainless steel liner, stainless steel material as shell, and the middle gap is wrapped with thermal insulation material. It has compact structure, centralized control, safe and reliable, and convenient operation and maintenance.
Product description:

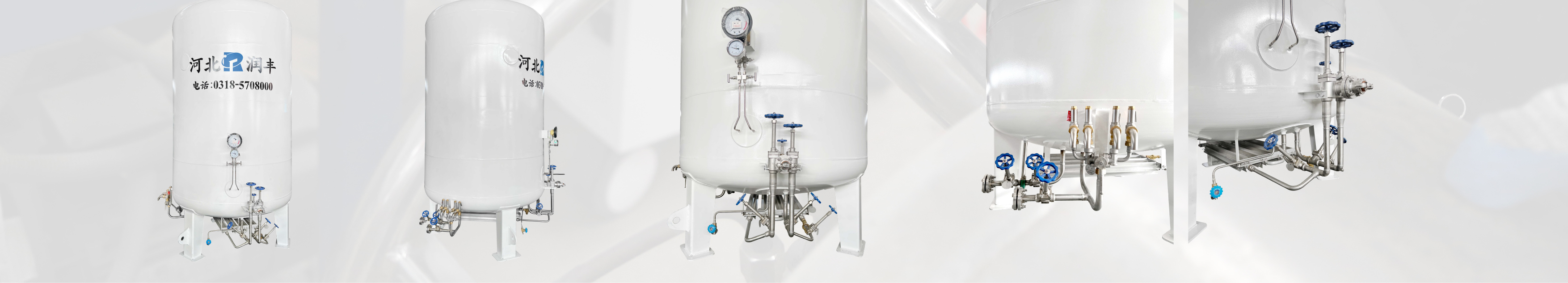

Runfeng 5m ³ The vertical cryogenic storage tank is equipped with liquid inlet pipelines at the top and bottom to realize the unloading and filling of differential pressure and cryogenic liquid pump. A double safety valve (or bursting disc) is set to discharge in case of overpressure to protect the safety of the inner container. Vacuumize and measure the vacuum pipeline, ensure the insulation performance of the interlayer, and the explosion-proof device of the shell can discharge gas in case of leakage of the inner container to avoid serious damage and danger. It has the advantages of large reserves, low evaporation rate, safety and reliability.

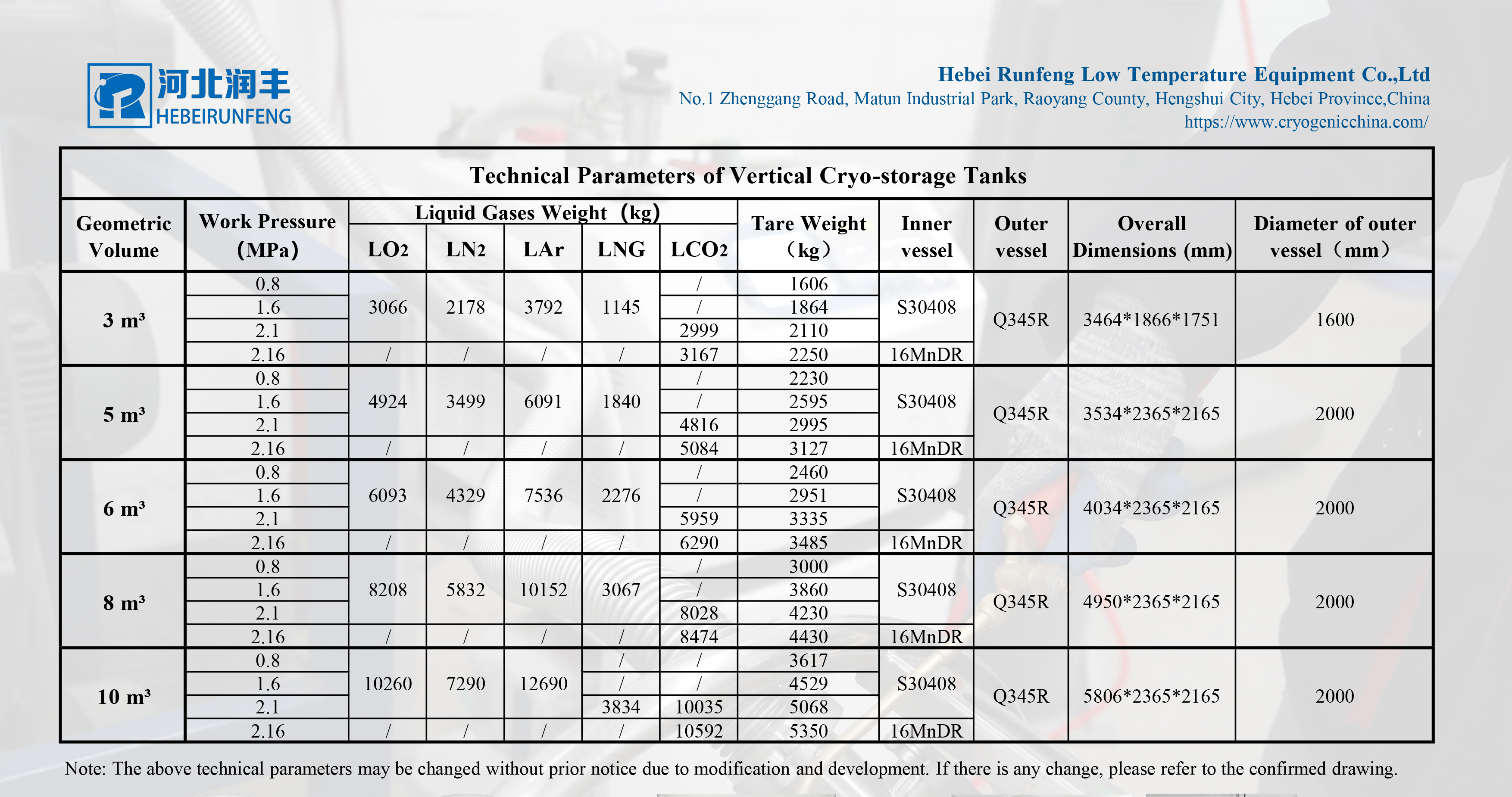

Model: 1m ³- 150m ³
Pressure: 0.8Mpa – 3.45Mpa
Application scenarios: medical technology, cryogenic treatment, food industry, etc
Main features
1. Customizable, providing customized services based on user needs.
2. The use of high vacuum multi-layer winding technology makes the product better thermal insulation performance and lighter quality.
3. Large reserves, low evaporation rate, safe and reliable, etc
application area
It can be widely used in medical technology, cryogenic treatment, food industry, etc

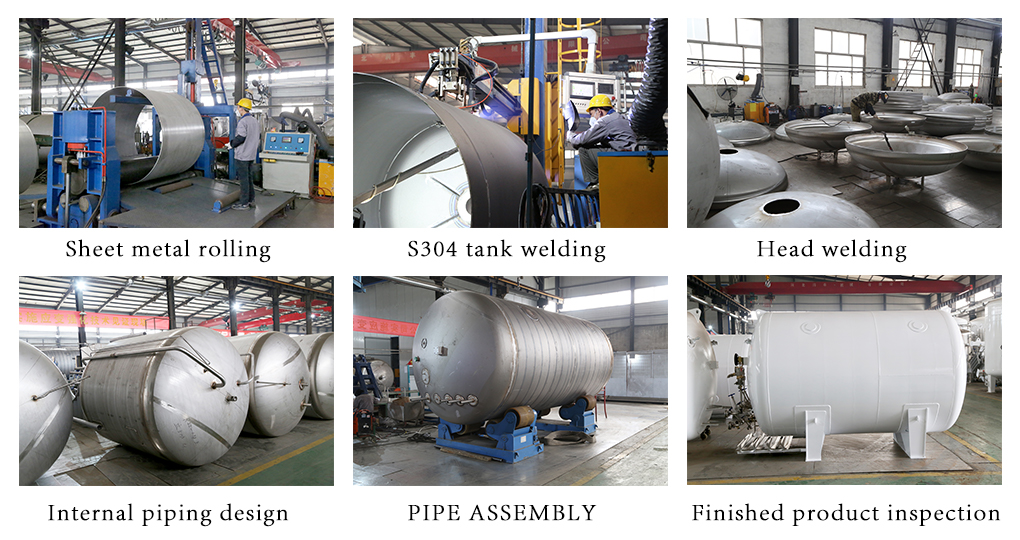

Production process：
Company Profile:
Hebei Runfeng Cryogenic Equipment Co., Ltd. is a new high-tech enterprise specializing in the design, manufacture, research and development and technical service of low-temperature pressure vessels.The company adopts the advanced production equipment at home and abroad at present, and has advanced equipment such as large hydraulic tilting plate bending machine, Italy automatic numerical control four-roller plate bending machine, automatic numerical control longitudinal seam, circumferential seam welding machine, vacuum pumping unit, numerical control winding machine, electrostatic spraying, etc.The company has advanced detection means, including helium mass spectrometer leak detector, spectrum analyzer, automatic ultrasonic flaw detector, magnetic particle flaw detector, X-ray digital imaging system and other sophisticated advanced detection equipment.The company’s leading products include liquefied natural gas cylinders for automobiles, low-temperature welding and thermal insulation cylinders, low-temperature storage tanks, DI and D2 pressure vessels and other series of products.It has an annual capacity of 40000 LNG cylinders and other pressure vessels with an output value of more than 100 million yuan.
Exhibition：
Our company has been invited to participate in exhibitions at home and abroad for many times. We hope to invite you to visit and exchange with us.
Qualification certification：
Packaging and transportation
Packaging: We can package according to customer requirements.
For shipment: we have an agent freight forwarder to help customers find the best freight. We recommend that customers conduct business in the form of CIF.
