Storage tanks are common in our life, so it is also easy for us to accept the new type of storage tanks like LNG storage tanks, but there will be certain dangers when using LNG storage tanks, let’s learn about it.

In LNG storage tank storage tank, LNG storage tank is in boiling state, in some pipeline and liquefaction section end of LNG storage tank area, it is close to boiling state, external heat transfer will lead to gasification to make the pressure super high, resulting in the safety valve open or cause more damage.
Tumbling: Due to the different composition and density of LNG in the storage tank, stratification is caused, and mass and heat transfer between the two layers is carried out to finalize the mixing, while evaporation takes place on the surface of the liquid layer. This evaporation process absorbs heat from the upper liquid layer and puts the lower liquid layer in a superheated state. When the density of the two liquids is close to equal, it will suddenly and rapidly mix and produce a large amount of gas in a short period of time, so that the pressure in the tank rises sharply, and even top open the safety valve.
To avoid this danger, special treatment should be adopted:

① light LNG is fed from the bottom of the tank, or heavy LNG is fed from the top of the tank, or a combination of both;

② an automatic density meter is installed in the tank to detect the layers of different densities;

③ the liquid is circulated from the bottom to the top with a pump in the tank;

④ the nitrogen content of LNG is kept below 1%, and the gasification rate is closely monitored.

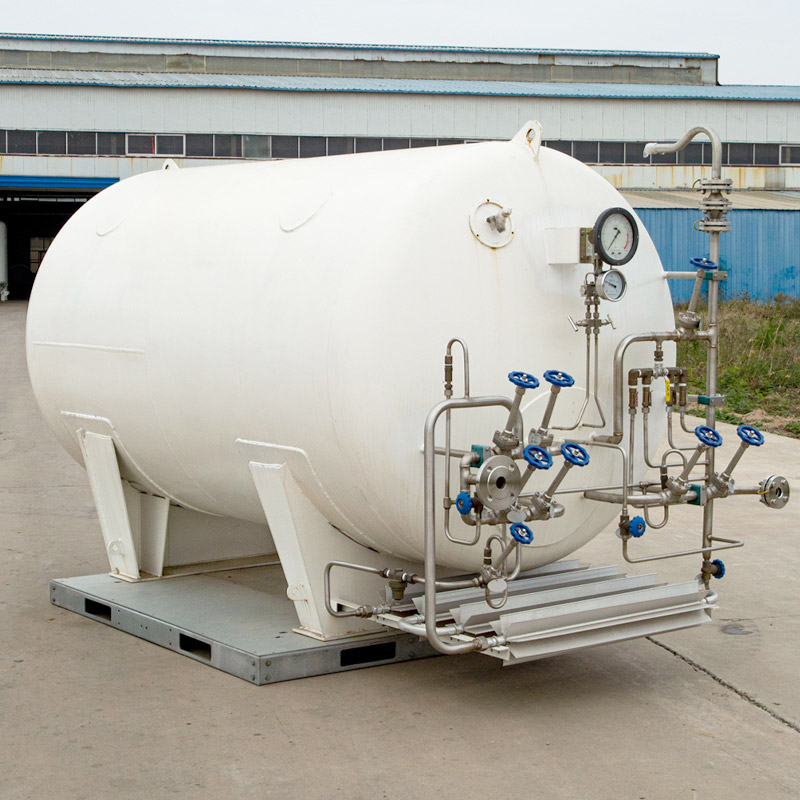

The storage system of LNG storage tank consists of low temperature storage tank, affiliated pipeline and control instrument, but it also belongs to the category of low temperature storage tank.LNG storage tank pipeline where austenitic stainless steel pipe is used. Austenitic stainless steel pipe has good low temperature performance. According to the different forms of placement and can be divided into vertical (LNG) storage tanks, insulation type using vacuum powder insulation skills, storage tank barrel and piping material selection of austenitic stainless steel, the outer barrel selection of fine carbon steel Q345R pressure vessel with steel plate. Such LNG storage tank not only has a long life, but also is very safe to use, and has been widely recognized by everyone.
